Configure a Layer Filter

Pivvot Layers are the visual representations of the datasets you have loaded via the Dataset Console

A Layer Filter presents a focused view of a layer in a map. By limiting the visibility of features in a layer, you can reveal what's important to your users. For example, you might create a filter on a transportation layer so that only railroads and public roads appear on the map.

Using filters you can create one or many purpose built layers from a single dataset.

To access the Layer Style

  1. Select the Layer Console icon on the left sidebar within Publish.
  2. Search and locate the layer in the list.
  3. Right-click the layer > Edit Layer OR click on the layer > select Edit Layer icon at the top right.
  4. Select the Style tab.

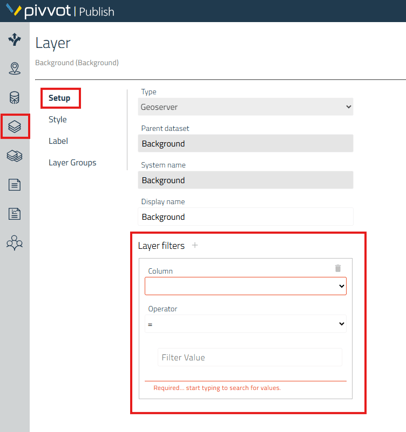

To add a Layer Filter

  1. Select Layer filter +
  2. Choose the desired Column.
  3. Choose the desired Operator function.
  4. Add a Filter Value (attributes).
  5. Click the Save button when complete.

You can have multiple filters for a single layer. The system will string the filters together using a logical "AND" operator. Simply select Layer filter + again and add another Layer Filter.

To delete a Layer Filter

  1. Select the Layer Console icon on the left sidebar within Publish.
  2. Search and locate the layer in the list.
  3. Right-click the layer > Edit Layer OR click on the layer > select Edit Layer icon at the top right.
  4. Select the Setup tab.
  5. Select the trash can icon on the Layer card.
